- ImagingSource:1/3"CCD
- System:PAL
- Resolution:Color650TVL,B/W700TVL
- EffectivePixel:752(H)x582(V)
- Min.Illumination:0Lux(withIR),Colorto B/W, withIR-CutFunction
- S/N Ratio:>60dB
- Backlight Compensation: ON/OFF
- WhiteBalance:Auto
- ElectronicShutter:1/50~1/12000second
- FocalLength:3.2~115.2mm
- Optical:36x
- Digital:10x
- Focus:Auto/Manual,adopthigh-performanceDSP,achieveall-digitalcontinuousfocusfunction
- Presets:256
- PatrolTrack:4,eachchannelcanrecord200actions
- CruiseTrack:16Presetscanjoincurise,Presetstaytimecanset
- OtherScan:Support Horizontalscan,framescan,radomscan
- RotationRange:Horizontal360 unlimited,Vertical180 ,Auto overturn
- RotationSpeed:Horizontal&Vertical:Min.0.01 ,Max.200 /s
- Communications:RS-485,PELCOD&PELCOP
- Menu:Full Screenmenu
- Temperature control system:Built-in
- PowerSupply:DC12V/4A,AC24V/3A(OPTIONAL)
- Operation Condition:-20C~+50 C(Optional temperature control components),<95%RH
- Material:Aluminumshell,WaterproofratingIP66
|

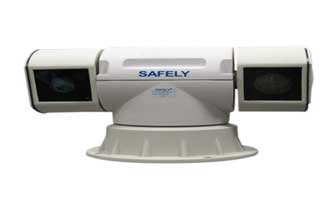

- 1/3"CCDHighSpeedDome
- Color650TVL,B/W700TVL
- 0Lux(withIR),ColortoB/W,withIR-CutFunction
- 3.2~115.2mmFocalLength
- 36xOpticalZoom,10xDigitalZoom
- IRDistance400M
|
 |
|
